Coil Voltage:
3V dc
Contact Configuration:
DPDT
Mounting Type:
PCB Mount
Maximum Switching Current AC:
4 A
Maximum Switching Current DC:
4 A
Maximum Switching Voltage AC:
277V
Maximum Switching Voltage DC:
220V
Maximum Switching Power DC:
90 W

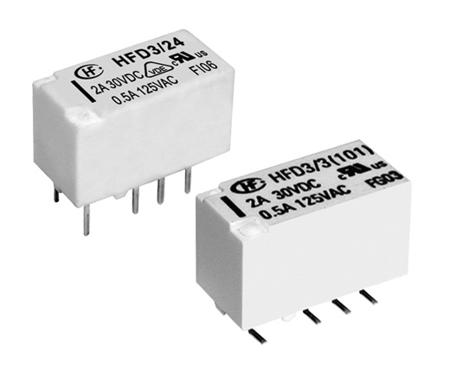

Series:
HFD3
Latching:
No
Length:
15mm
Depth:
7.5mm
Height:
9.4mm
Dimensions:
15 x 7.5 x 9mm
Terminal Type:
PCB Pin
Switching Current:
2A
Number of Poles:
1
Relay Switching Classification:
Subminiature Signal Relay
Minimum Operating Temperature:
-40°C
Maximum Switching Power AC:
62.5VA
Life:
1 x 10^8 cycles
Operating Temperature Range:
-40 → +85°C
Isolation Coil To Contact:
1.5kV ac
Contact Material:
Gold Plated
Maximum Operating Temperature:
+85°C
Coil Power:
100mW
Features:
SMT And DIP Types Available, Bifurcated Contacts, Single Side Stable And Latching Type Available
Electrical Life:
100000 Operations
Coil Resistance:
90Ω
