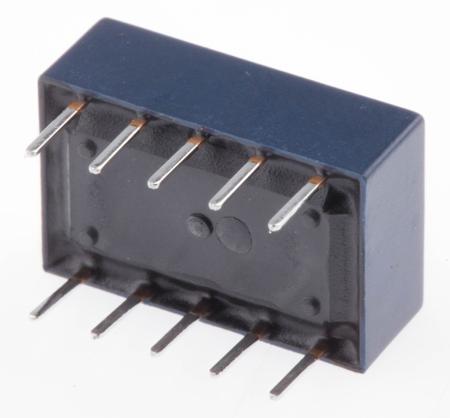

tq23 Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, SPDT
tq23 Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, SPDT
tq23 Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, SPDT

Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, SPDT

Panasonic PCB Mount Signal Relay, 3V dc Coil, 1A Switching Current, SPDT

Manufacturer:
Panasonic
Manufacturer Part No:
TQ23
Enrgtech Part No:
ET16752835
Warranty:
Manufacturer
QAR 15.09 QAR 15.09
Checking for live stock
Coil Voltage:
3V dc
Contact Configuration:
SPDT
Mounting Type:
PCB Mount
Maximum Switching Current DC:
1 A
Maximum Switching Voltage AC:
125V ac
Maximum Switching Voltage DC:
110V dc
Series:
TQ
Maximum Switching Power DC:
30 W
Latching:
No
Length:
14mm
Depth:
9mm
Height:
5mm
Dimensions:
14 x 9 x 5mm
Terminal Type:
PCB Pin
Number of Poles:
1
Application:
General Purpose
Switching Current:
1A
Operating Temperature Range:
-40 → +70°C
Contact Material:
Gold Plated
Features:
High Density Mounting Possible, Low Thermal Electromotive Force, Self Clinching Terminal Also Available
Coil Resistance:
64.3Ω
Isolation Coil To Contact:
1.5kV rms
Maximum Operating Temperature:
+70°C
Coil Power:
140mW
Maximum Switching Power AC:
62.5VA
Minimum Operating Temperature:
-40°C
Life:
100000000 (Electrical) cycles
pdf icon
0900766b80e0dfce.pdf(datasheets)
Explore signal relays for reliable low-voltage control. Enrgtech offers compact PCB relays designed for precision switching in electronic signal circuits.
