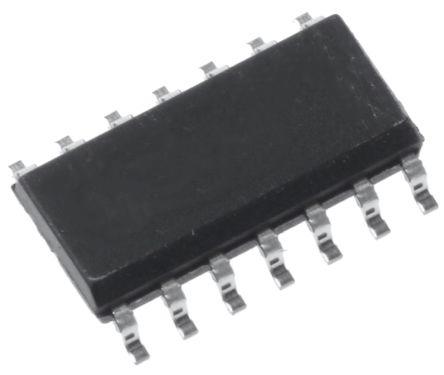

onsemi MM74HC132M, Quad 2-Input NAND Schmitt Trigger Quad 2 Input NAND, 14-Pin SOIC

onsemi MM74HC132M, Quad 2-Input NAND Schmitt Trigger Quad 2 Input NAND, 14-Pin SOIC

Manufacturer:

Manufacturer Part No:

MM74HC132M

Enrgtech Part No:

ET100207132

Warranty:

Manufacturer

QAR 1.12

Checking for live stock

Logic Function:

NAND

Mounting Type:

Surface Mount

Number of Elements:

Reference Voltage:

Schmitt Trigger Input:

Yes

Package Type:

SOIC

Pin Count:

Logic Family:

Input Type:

Schmitt Trigger

Maximum Operating Supply Voltage:

6 V

Maximum High Level Output Current:

5.2mA

Maximum Propagation Delay Time @ Maximum CL:

186 ns @ 50 pF

0900766b8170d65f.pdf(datasheets)
