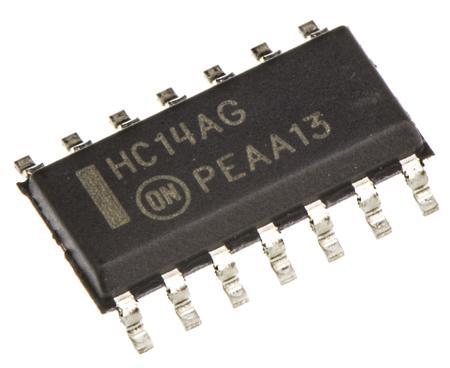

onsemi MC74HC14ADG Hex Schmitt Trigger Inverter, 14-Pin SOIC

Manufacturer:

Manufacturer Part No:

MC74HC14ADG

Enrgtech Part No:

ET21455544

Warranty:

Manufacturer

QAR 1.01

Checking for live stock

Logic Function:

Inverter

Input Type:

Schmitt Trigger

Number of Elements per Chip:

Schmitt Trigger Input:

Yes

Maximum Propagation Delay Time @ Maximum CL:

13 ns @ 6 V, 15 ns @ 4.5 V, 30 ns @ 3 V, 75 ns @ 2 V

Maximum High Level Output Current:

-5.2mA

Maximum Low Level Output Current:

5.2mA

Mounting Type:

Surface Mount

Package Type:

SOIC

Pin Count:

Logic Family:

Dimensions:

8.75 x 4 x 1.5mm
