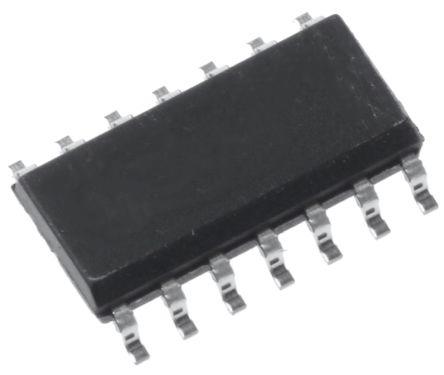

STMicroelectronics M74HC14YRM13TR Hex Schmitt Trigger Logic Gate, 14-Pin SO

Manufacturer:

Manufacturer Part No:

M74HC14YRM13TR

Enrgtech Part No:

ET12175062

Warranty:

Manufacturer

QAR 1.22

Checking for live stock

Logic Function:

Inverter Schmitt Trigger

Input Type:

Schmitt Trigger

Number of Elements per Chip:

Schmitt Trigger Input:

Yes

Maximum Propagation Delay Time @ Maximum CL:

190 ns @ 50 pF

Maximum High Level Output Current:

-5.2mA

Maximum Low Level Output Current:

5.2mA

Mounting Type:

Surface Mount

Package Type:

Pin Count:

Logic Family:

Dimensions:

8.75 x 4 x 1.65mm

0900766b81720c74.pdf(datasheets)
