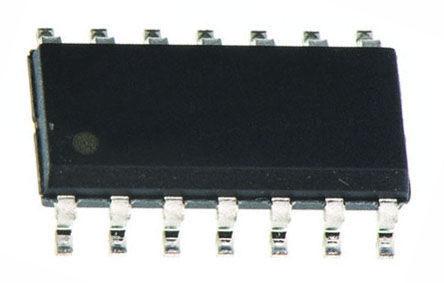

Nexperia 74HC14D-Q100,118 Dual Schmitt Trigger Inverter, 14-Pin SO

Manufacturer:

Manufacturer Part No:

74HC14D-Q100,118

Enrgtech Part No:

ET100906551

Warranty:

Manufacturer

QAR 1.22

Checking for live stock

Logic Function:

Inverter Schmitt Trigger

Input Type:

Schmitt Trigger

Output Type:

Single Ended

Number of Elements per Chip:

Schmitt Trigger Input:

Yes

Maximum Propagation Delay Time @ Maximum CL:

190 ns @ 15 pF

Maximum High Level Output Current:

-5.2mA

Maximum Low Level Output Current:

5.2mA

Mounting Type:

Surface Mount

Package Type:

Pin Count:

Logic Family:

74HC
