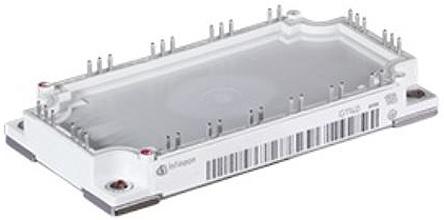

Infineon FS150R12KE3BOSA1 3 Phase Bridge IGBT Module, 200 A 1200 V AG-ECONO3-4, Panel Mount

Infineon FS150R12KE3BOSA1 3 Phase Bridge IGBT Module, 200 A 1200 V AG-ECONO3-4, Panel Mount

Manufacturer:

Manufacturer Part No:

FS150R12KE3BOSA1

Enrgtech Part No:

ET16792841

Warranty:

Manufacturer

QAR 430.35

Checking for live stock

Maximum Continuous Collector Current:

200 A

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

700 W

Package Type:

AG-ECONO3-4

Configuration:

3 Phase Bridge

Mounting Type:

Panel Mount

Channel Type:

Transistor Configuration:

3 Phase

Dimensions:

122 x 62 x 17mm

Minimum Operating Temperature:

-40 °C

Maximum Operating Temperature:

+125 °C

0900766b814de168.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
