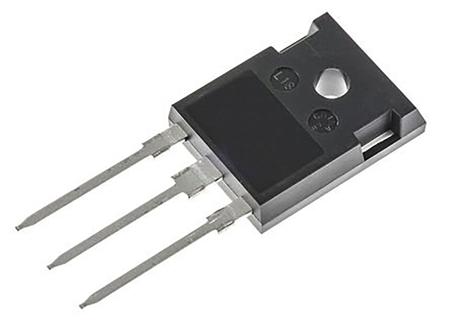

STMicroelectronics STGW30NC120HD IGBT, 60 A 1200 V, 3-Pin TO-247, Through Hole

Manufacturer:

Manufacturer Part No:

STGW30NC120HD

Enrgtech Part No:

ET11201701

Warranty:

Manufacturer

QAR 10.57

Checking for live stock

Maximum Continuous Collector Current:

60 A

Maximum Collector Emitter Voltage:

1200 V

Maximum Gate Emitter Voltage:

±25V

Maximum Power Dissipation:

220 W

Package Type:

TO-247

Mounting Type:

Through Hole

Channel Type:

Pin Count:

Switching Speed:

1MHz

Transistor Configuration:

Single

Dimensions:

15.75 x 5.15 x 20.15mm

Maximum Operating Temperature:

+150 °C

0900766b812941a0.pdf(datasheets)

0900766b81644fb0.pdf(datasheets)
