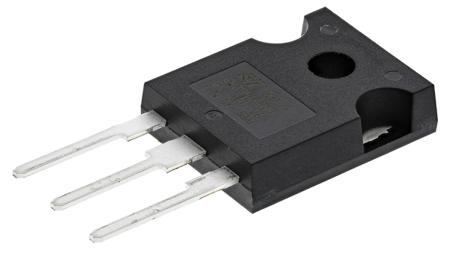

STMicroelectronics STGW39NC60VD IGBT, 80 A 600 V, 3-Pin TO-247, Through Hole

Manufacturer:

Manufacturer Part No:

STGW39NC60VD

Enrgtech Part No:

ET100824418

Warranty:

Manufacturer

QAR 17.61

Checking for live stock

Maximum Continuous Collector Current:

80 A

Maximum Collector Emitter Voltage:

600 V

Maximum Gate Emitter Voltage:

±20V

Maximum Power Dissipation:

250 W

Package Type:

TO-247

Mounting Type:

Through Hole

Channel Type:

Pin Count:

Switching Speed:

1MHz

Transistor Configuration:

Single

Dimensions:

15.75 x 5.15 x 20.15mm

Maximum Operating Temperature:

+150 °C

0900766b812941a1.pdf(datasheets)

0900766b81644faf.pdf(datasheets)
