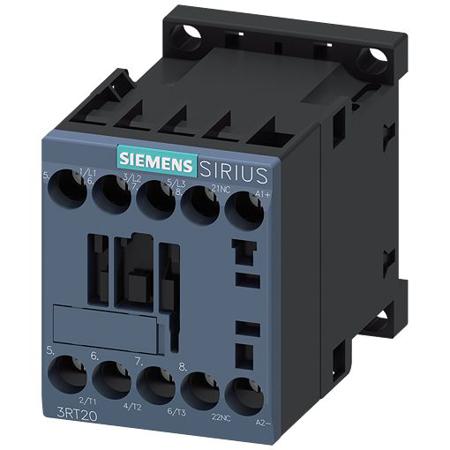

Coil Voltage:
24/34 V dc
Product Type:
Contactor
Number of Poles:
3
Contact Voltage:
400V
Contact Current:
20A
Power Rating:
5.5kW
Series:
3RT2
Function:
Mirror Contact, Pipe S-Type
Mount Type:
DIN Rail
Normal State Configuration:
1 NC
Auxiliary Contact Configuration:
1 NC
Number of Auxiliary Contacts:
1
Terminal Type:
Screw
Contactor Application:
AC-3, AC-3e, Traction Contactor
Minimum Operating Temperature:
-40°C
Operational Current Ie:
12A
Control Circuit Voltage Uc:
34 V
Maximum Operating Temperature:
70°C
Length:
58mm
Width:
45 mm
Depth:
73mm
Standards/Approvals:
PRS, IEC 60947-5-1, IEC 61508, RCM, RMRS, UKCA, UL, ABS, CCC, CE, CSA, DNV, EAC, IEC 60947-4-1
Pole and Throw Configuration:
3P
