Product Type:

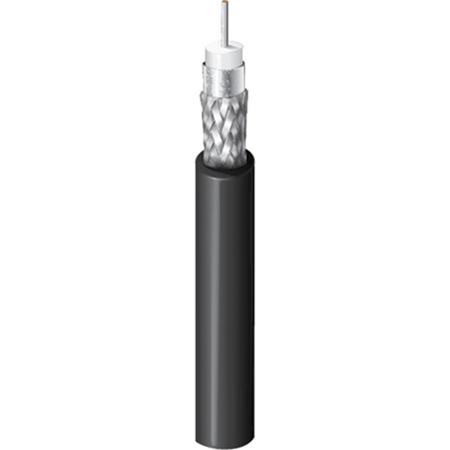

SDI Coaxial Cable
Terminated/Unterminated:
Unterminated
Coaxial Type:
RG6/U
Outside Diameter:
6.86 mm
Characteristic Impedance:
75Ω
Attenuation:
0.75 dB/100m
Minimum Operating Temperature:
-30°C
Maximum Operating Temperature:
75°C
Standards/Approvals:
IEC 60227-5, VW-1, DEF STAN 61-12 Part 6, BS4808, TS 9760 HD 21.5.S3, BASEC, UL1581, VD0295, UL, HAR, IEC60332-1, BS4109, BS EN13062, VD0281-5, CENELEC, ISO9001, RoHS, IEC 60228 Css 5, REACH, VD2050, IEC 60332-1-2
Fire Behaviour:
Flame resistance to UL1581 VW-1, Low Flammability, IEC 60332-1, Heat resistant to 160°C, LSZH (Low Smoke Zero Halogen), Flame Retardant to IEC 60332-1-2, Reaction to fire (CPR Euroclass rating)
Conductor Material:
Silver Plated Copper
Series:
4694R
